Python Examples

A few Python examples are provided in examples/example.py. The basic components of these examples, such as creating toolpaths and defining robot systems, are explained below. First, install pyrobopath, then cd to the examples directory, and run the following command:

Run the provided examples

python3 examples.py

Toolpaths

A toolpath is created from a collection of Contour s. Contours represent a contiguous path that is traversed by a specified tool. The toolpath can either be created manually, or parsed from a standard Gcode file.

The tool representation is up to the user, but a good choice is to define each tool with an enum.

Example tool represenation

from enum import Enum

class Materials(Enum):
    MATERIAL_A = 1
    MATERIAL_B = 2

Manual Toolpath Creation

To create a toolpath manually, we must first define a set of contours.

from pyrobopath.toolpath import Contour, Toolpath

path1 = [np.array(1.0, 0.0, 0.0), np.array(0.0, 0.0, 0.0), np.array(0.0, 1.0, 0.0)]
path2 = [np.array(1.0, 0.0, 0.0), np.array(0.0, 0.0, 0.0), np.array(0.0, 1.0, 0.0)]
path3 = [np.array(1.0, 0.0, 0.0), np.array(0.0, 0.0, 0.0), np.array(0.0, 1.0, 0.0)]

contour1 = Contour(path=path1, tool=Materials.MATERIAL_A)
contour2 = Contour(path=path2, tool=Materials.MATERIAL_A)
contour3 = Contour(path=path2, tool=Materials.MATERIAL_A)

toolpath = Toolpath()
toolpath.contours = [contour1, contour2, contour3]

Gcode Toolpath Creation

A toolpath can be created from standard Gcode flavors.

Caution

Only the reprap flavor from slic3r has been tested thus far. It should be relatively simple to write a parser for other representations.

The gcodeparser package is used to read a Gcode file to a python representation.

from gcodeparser import GcodeParser

filepath = "<path to gcode>"
with open(filepath, "r") as f:
    gcode = f.read()
parsed_gcode = GcodeParser(gcode)

Then, the parsed Gcode is transformed to a pyrobopath Toolpath. A contour is defined by a consecutive group of linear G1 moves that have an extrusion value greater than 0. Contours are separated by G0 travel (rapid) moves or G1 moves with no extrusion.

from pyrobopath.toolpath import *

toolpath = Toolpath.from_gcode(parsed_gcode.lines)

Toolpath Visualization

After creating a toolpath with one of the methods listed above, the path can be visualized using the pyrobopath.toolpath.visualization module. There are functions for 2D and 3D visualization. The 2D projected visualization separates contours by distinct Z-heights and is useful for inspecting additive manufacturing (3D printing) paths.

from pyrobopath.toolpath.visualization import (
  visualize_toolpath,
  visualize_toolpath_projection
)

# toolpath = ...

visualize_toolpath(toolpath) # 3D
visualize_toolpath_projection(toolpath) # 2D projection

Creating a Multi-robot System

A toolpath planner requires a system definition that defines the robot base frame position, home position, collision model, and others. This system definition is provided as a dictionary with the keys as agent IDs and the values as AgentModel.

We will create a simple two robot system.

from pyrobopath.collision_detection import FCLRobotBBCollisionModel
from pyrobopath.toolpath_scheduling import *

bf1 = np.array([-350.0, 0.0, 0.0])
bf2 = np.array([350.0, 0.0, 0.0])

# create agent collision models
agent1 = AgentModel(
    base_frame_position=bf1,
    home_position=np.array([-250.0, 0.0, 0.0]),
    capabilities=[Materials.MATERIAL_A],
    velocity=50.0,
    travel_velocity=50.0,
    collision_model=FCLRobotBBCollisionModel((200.0, 50.0, 300.0), bf1),
)
agent2 = AgentModel(
    base_frame_position=bf2,
    home_position=np.array([250.0, 0.0, 0.0]),
    capabilities=[Materials.MATERIAL_B],
    velocity=50.0,
    travel_velocity=50.0,
    collision_model=FCLRobotBBCollisionModel((200.0, 50.0, 300.0), bf2),
)
agent_models = {"robot1": agent1, "robot2": agent2}

Collision Geometry

There are a few options for defining the collision geometry of robots. Each of the provided geometries are manipulated in Cartesian space. This greatly simplifies the collision checking process, and therefore the task allocation and scheduling, for multi-robot systems.

The simplest collision geometries are the LineCollisionModel, defined by a single line between the robot’s base and end effector, and the LollipopCollisionModel that, in addition to the line, adds a sphere around the end effector.

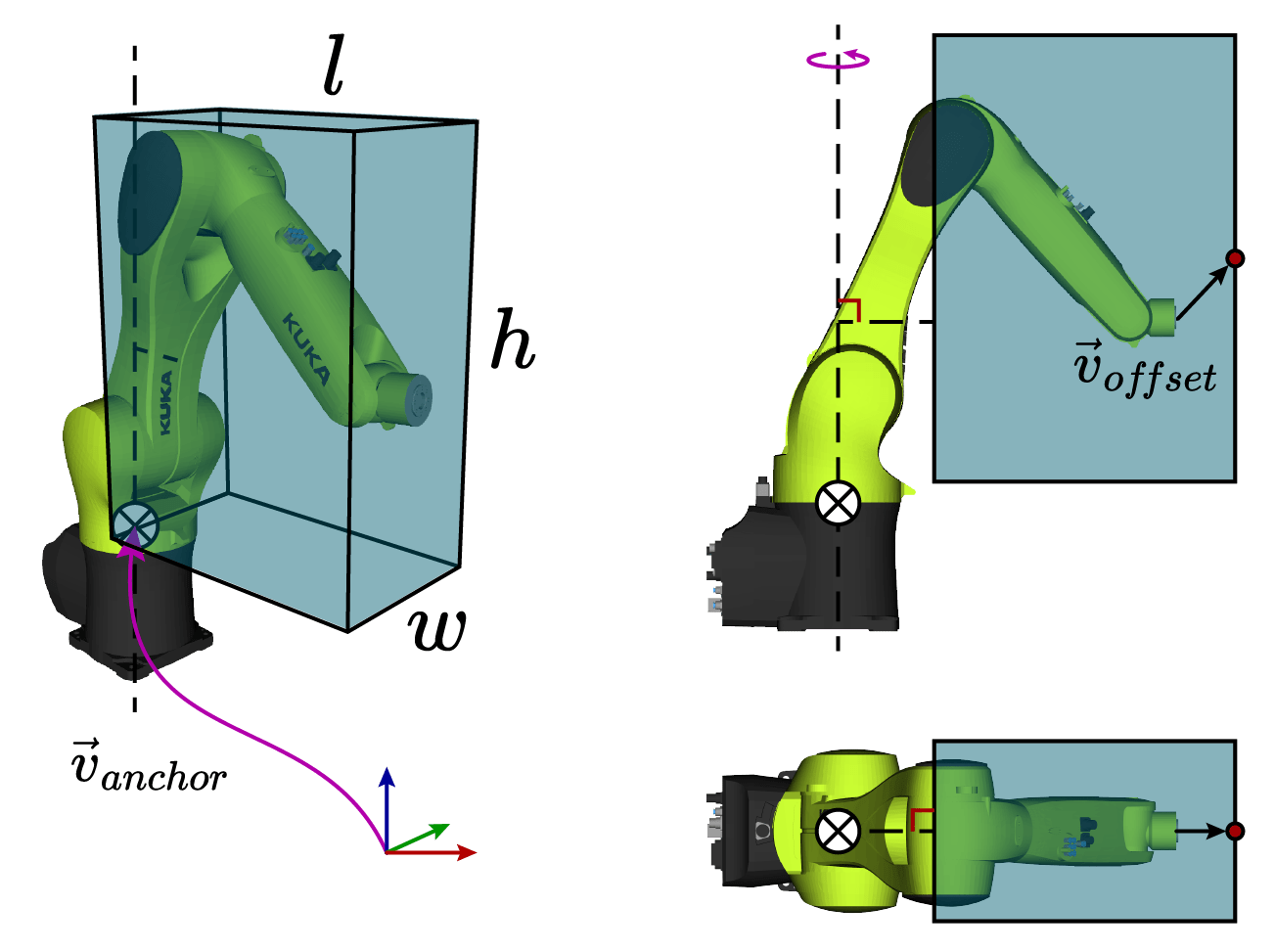

The python-fcl library is used for more complicated collision geometries. Arguably, the most useful model is defined by the FCLRobotBBCollisionModel. This model defines a bounding box that is rigidly attached to the end effector of the robot and rotates around an axis through the robot’s base. This model is shown in the image below.

The dimensions of the bounding box are defined by the dims parameter \(\textrm{dims}=\left(l, w, h\right)\). The anchor vector \(\vec{v}_{anchor}\) defines the base frame location of the robot with respect to the world, and the offset \(\vec{v}_{offset}\) defines the rigid translation between the end effector and the center face of the bounding box. The offset argument can be used to adjust the bounding box geometry to better approximate the links of the robot. This can also be useful if the robot tool geometry extends past the tool center point.
